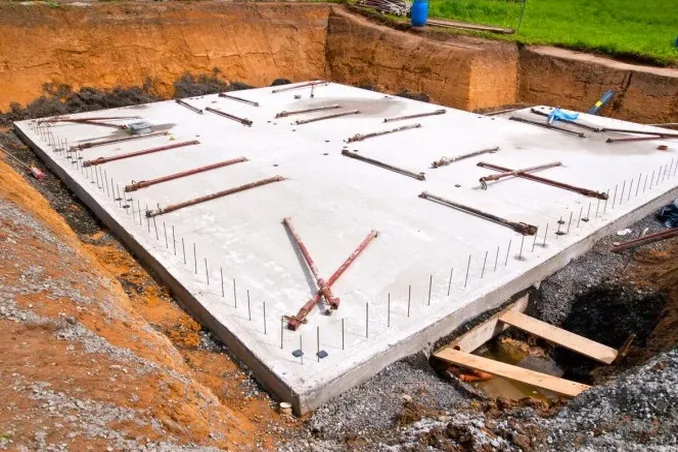

The ground beneath Basingstoke doesn't read the textbooks. Drive ten minutes from the London Clay outcrops south of the M3 toward the chalk uplands around Overton and you'll cross three different bearing conditions before you've finished your coffee. The northern and central parts of town sit on the London Clay Formation — stiff, overconsolidated, and notorious for seasonal shrink-swell cycles that can lift a lightly loaded slab by 40mm between February and August. Head south and east and you're into the Seaford Chalk, where solution features and infilled pipes create point-load nightmares for conventional footings. That transition zone running through areas like Hatch Warren and Beggarwood is where raft foundation design stops being a textbook exercise and becomes a genuine engineering judgment call. Our team has been working these Basingstoke soils long enough to know that the desk study and a proper test pit investigation are worth more than any generic bearing capacity formula — you need to see the strata with your own eyes before you commit to a reinforcement layout. When the chalk is weathered to structureless grade C/D material, we often specify a deeper raft with edge thickening and combine the site data with in-situ permeability testing to design the sub-slab drainage that prevents long-term softening of the bearing stratum. The 2021 Basingstoke and Deane Strategic Flood Risk Assessment maps significant areas of the Loddon and Test catchments as high groundwater vulnerability, which means your raft design has to account for buoyancy checks under BS EN 1997-1 Annex A — something that gets missed more often than it should on domestic extensions and small commercial builds.
On Basingstoke's London Clay, the governing limit state for raft foundations is nearly always seasonal heave — not bearing failure — and the difference between the two design philosophies can cost you a cracked slab within two winters.
Our approach and scope
Local considerations
The 2019 Basingstoke Infrastructure Delivery Plan identified over 8,000 new homes allocated across the borough through 2029, and a significant proportion of those sites are on London Clay slopes or chalk terrain where differential heave and dissolution features aren't flagged on a standard Phase 1 desk study. The cost of getting the ground wrong on a raft foundation in Basingstoke isn't measured in remedial works alone — it's the structural cracking that appears 18 months after handover, the NHBC claim that drags on for two years, and the reputational damage that follows a builder through every planning committee in the borough. On chalk sites, the presence of clay-infilled pipes and solution hollows can create localised soft spots that conventional site investigation boreholes miss entirely — we've mapped features extending 4 metres below formation level on sites where the nearest borehole showed competent Grade A chalk. The mitigation is a site-specific investigation that combines closely spaced dynamic probes with targeted CPT testing to detect the sharp cone resistance drops that signal a dissolution feature before the concrete goes in. On London Clay sites, the bigger risk is often cumulative over several wet-dry cycles: a raft that performs adequately in year one may begin to exhibit progressive edge lift as the clay beneath the perimeter reaches equilibrium moisture content over three to five seasons. Designing for the long-term equilibrium condition rather than the as-constructed moisture profile is what separates a 60-year design life from a 6-year one.
Relevant standards
BS EN 1997-1:2004 (Eurocode 7: Geotechnical design — General rules) with UK National Annex, BS 8004:2015 Code of practice for foundations, BS 5930:2015+A1:2020 Code of practice for ground investigations, and NHBC Standards Chapter 4.2: Building near trees (shrinkable clay provisions) govern the design and execution of raft foundations in Basingstoke’s London Clay and Chalk transition zones.
Other technical services
Geotechnical Interpretative Report with Raft Design Parameters
Integration of borehole logs, laboratory testing, and in-situ data into a design soil model specifying undrained shear strength profiles, constrained modulus values, and subgrade reaction modulus distribution across the raft footprint.
Settlement and Heave Analysis (FEM)
Non-linear finite element modelling of the raft-soil interaction accounting for stiffness degradation in chalk and suction-driven heave in desiccated London Clay, with output as total and differential settlement contours.
Reinforcement Detailing and Structural Design
BS EN 1992-1-1 compliant design of raft reinforcement including top and bottom mats, edge thickening steel, and punching shear checks at column locations — coordinated with your structural engineer.
Construction-Phase Ground Verification
On-site inspection of formation levels during excavation, verification of bearing stratum against design assumptions, and confirmation testing for compaction or ground improvement works beneath the raft.
Typical parameters
Questions and answers
Does a raft foundation work on Basingstoke's London Clay, or will heave crack the slab?
A properly designed raft works well on London Clay — but only when heave is treated as the governing limit state. The weathered upper 3-4 metres of London Clay across north Basingstoke typically has a plasticity index between 25% and 45%, which puts it firmly in the medium-to-high shrink-swell category under NHBC Chapter 4.2. We specify compressible void formers beneath internal stiffening beams where the desiccated zone exceeds 1.5m depth, and the raft thickness is increased at the perimeter to resist the cantilever bending induced by edge lift. The key is designing for the long-term equilibrium moisture condition rather than the as-constructed state — that means assuming the clay will eventually reach field capacity after several wet seasons, and sizing the reinforcement accordingly.
How much does a raft foundation design for a typical Basingstoke house extension cost?
For a single-storey extension or new-build residential project in Basingstoke, a complete raft foundation design package — including ground investigation interpretation, settlement analysis, and reinforcement detailing — typically falls between £830 and £3,210 depending on site complexity, access conditions, and whether you're on London Clay, chalk, or the transition zone between the two. Sites with suspected dissolution features or a history of nearby foundation issues fall toward the upper end because of the additional analysis required. We provide a fixed-fee proposal after reviewing your architect's drawings and any existing ground investigation data.
What ground investigation do I need before a raft foundation can be designed in Basingstoke?
At minimum, you need boreholes or trial pits to at least 1.5 times the raft width below formation level — and on London Clay sites, deeper to capture the full desiccated zone profile. For a typical residential raft in Basingstoke, that means 4-6m depth. The investigation should include Atterberg limit testing on the clay, unconfined compressive strength tests on chalk samples, and standpipe piezometers if groundwater is encountered within 2m of formation level. On chalk sites with any history of dissolution features in the area, we strongly recommend a dynamic probe survey at 2-3m centres across the footprint to detect soft spots that a single borehole might miss.
How long does raft foundation design take from instruction to issued drawings?
Assuming the ground investigation data is already available, a typical residential raft design in Basingstoke takes 10-15 working days from instruction to issue of preliminary calculations, with final signed-off drawings following within 5 working days of any client or building control comments. Projects requiring finite element settlement analysis on variable ground — particularly chalk-to-clay transition sites — may add 5 working days to the programme. We can accommodate faster turnaround for urgent projects where the site investigation is complete and the architectural layout is fixed.
What's the main difference between designing a raft on chalk versus London Clay in Basingstoke?
The failure mechanisms are completely different. On London Clay, the raft is governed by heave and seasonal moisture cycling — you're designing to resist bending from differential vertical movement, and the bearing capacity is rarely the limiting factor. On chalk, particularly the Seaford Chalk found south and east of Basingstoke, the primary risk is localised bearing failure at dissolution pipes and solution hollows that create soft infilled zones within otherwise competent rock. The chalk design requires a much more intensive ground investigation to prove continuity of the bearing stratum, and the raft typically works at higher bearing pressures — 200-400 kPa versus 75-150 kPa on the clay. On transition sites where both materials are present beneath the footprint, we design for the softer material and use ground improvement or varying raft thickness to manage the stiffness contrast.
